Specifications

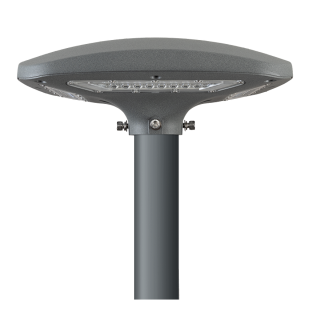

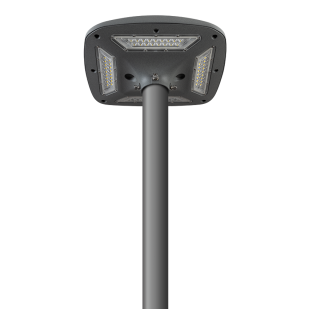

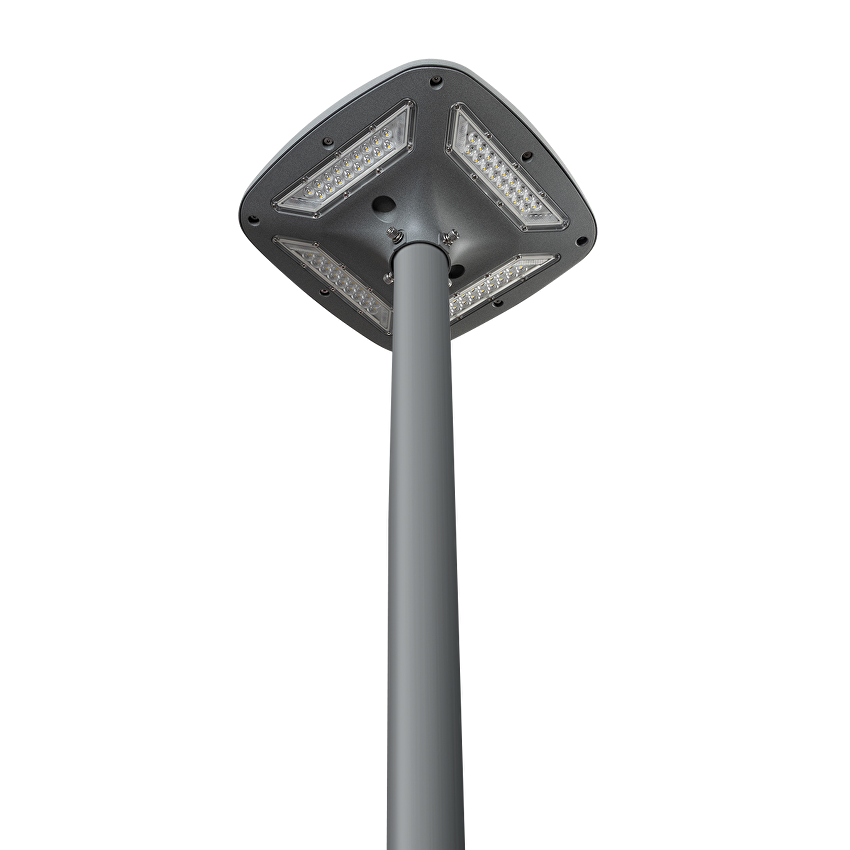

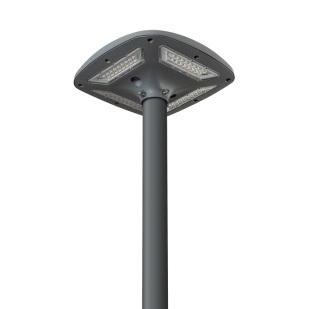

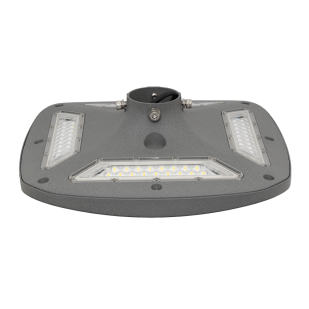

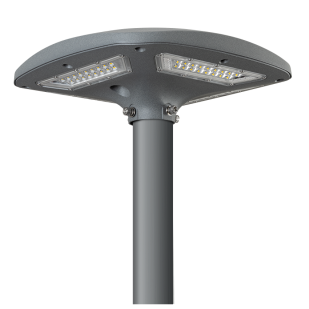

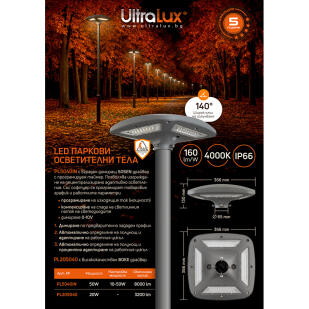

The PL5040IN is an LED park light fixture with a built-in dimmable SOSEN driver featuring a programmable timer, which enables the creation of decentralized adaptive street/park lighting. Using software, the load schedule and operating parameters of the fixture are pre-programmed.

• built-in protection against overheating, short circuit, and overvoltage;
• programming of the output current (power);
• compensation for LED luminous flux degradation;
• 0–10V dimming.

1. dimming according to a pre-set profile;

2. automatic midnight detection and adaptation of the operating cycle;

3. automatic midnight detection and percentage-based adaptation of the operating cycle.

Advantages:

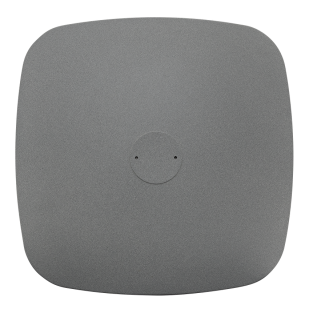

• Housing – aluminum casting with high impact resistance IK08, powder-coated and corrosion-resistant. Does not accumulate dirt (self-cleaning);
• Optical system – each LED chip has a polycarbonate optic, weather-resistant (UV-resistant), distributing light at a wide 140° angle;
• High protection rating against dust and moisture: IP66. The fixtures are suitable for outdoor lighting;
• Built-in surge protection of 6 kV;
• Exceptionally high efficiency of 160 lm/W;
• Flicker-free emitted light;
• Power factor PF > 0.9
