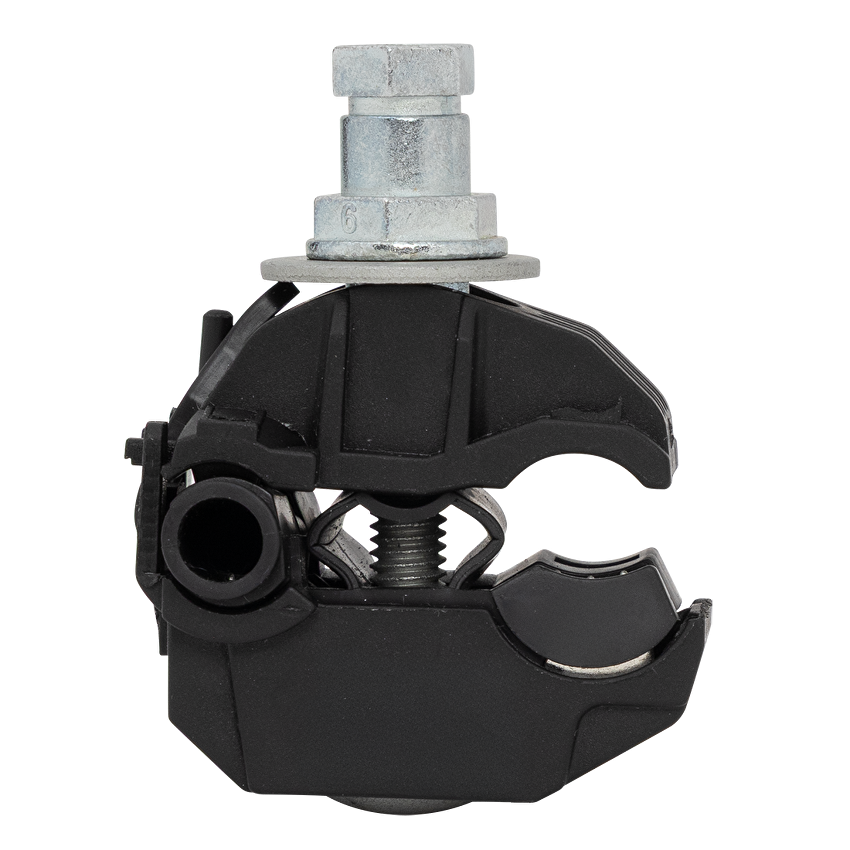

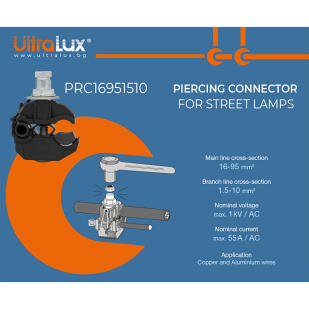

Piercing connector for street lamps 16-95mm2, 1.5-10mm2
PRC16951510
Specifications
- Main line cross-section: 16-95mm2;
- Branch line cross-section: 1.5-10mm2;
- Tightening torque: 11 Nm;
- Electric contact material: Galvanized copper;
- Bolt: 1 Х М6;
- Body and sealant: Weather and UV resistant Polyamide PA66 and elastomer;
- Nut with share-head: Alumonium alloy: 10mm;
- Insulation cap: UV and weather resistant elastomer;
- Washer: Steel;
- Standard: EN 50483-4;
- Nominal current: max. 55А/AC;
- Application: Copper and Aluminium wires.
