Specifications

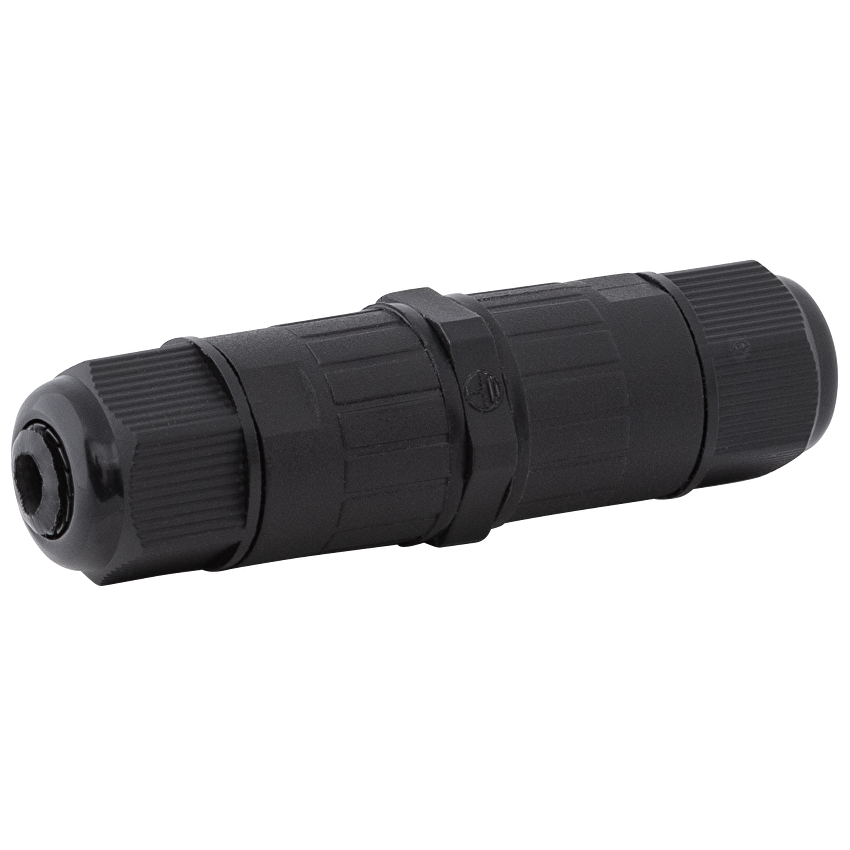

Waterproof L10 connector, 3 pins, 10A, IP68, designed for:

• Quick, easy and reliable realization of electrical connections;
• Ensuring good mechanical protection;
• Prevention of dust and moisture penetration.

Advantages:

•  Made of fire-retardant and UV-stable polyamide, with high mechanical and electrical resistance. This allows it to be used outside, under different weather conditions.

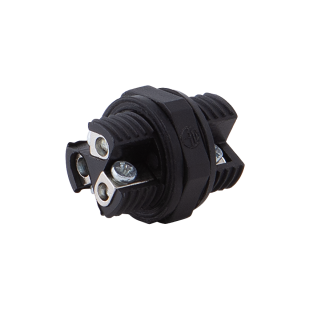

• Three-position terminal block from nickel brass, ensures a solid and reliable electrical connection of conductors with cross-section ranging from 0.5 to 1.5 mm².
• High quality coupler ensures a reliable connection, fully protected from dust and moisture (IP68). Maximum cable diameter is 7 mm.
• Compact size 70/20 mm.
• High breakdown voltage – 3 kV.
• Excellent insulation parameters – 500 MΩ/500 V DC.
• Max. working voltage – 250 V AC.
• Max. load – 10 A.

Application:

• Industrial lighting.
• Street lighting.
• Garden lighting.
• Exterior lighting.
• Lighting projects.
